Product Details:
Payment & Shipping Terms:
|
| Appearance: | Black Granule | Package: | 25kg Bag |
|---|---|---|---|
| Molding Process: | Compression | Filler: | Wood Flour And Inorganic Powder |
| Features1: | Improved Heat Resistance | Features2: | Short Moulding Cycle |
| High Light: | phenolic moulding powder,phenolic molding powder |
||

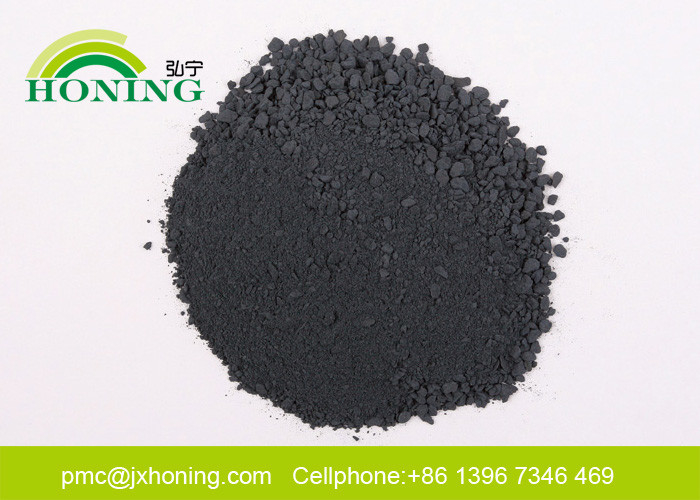

● Based on phenolic novolak resin,wood dust and mineral dust filled
● Fast Curing and suitable for compression moulding process
● For general purpose of parts and knobs for household appliance
Bakelite Moulding Powder(PMP) are produced with with heated rollers or extruders.Treatment of a mixture of phenolic novolac resin,hexamethylenetetramine, fillers and additives leads to an intermediate, the actual moulding material. The polycondensation is driven so far that the moulding material in the final molding step can still flow, but so that the final cross-linking occurs very quickly. Especially important processing properties are good flow characteristics and rapid curing.
HONING General purpose PMP PF2A2-131
Used under the upper temperature limit of 200℃ and the upper voltage limit of 220V
Suitable for handles of pan and pot, lamp holders ,plugs and sockets
♦ Good Fluidity
♦ Rapid Curing
♦ High surface quality
Specification:
| Physical properties | Typical value | Unit | Standard |
| Density | 1.5 | g/cm3 | ISO1183 |
| Apparent Density | 0.5 | g/cm3 | ISO60 |
| Moulding Shrinkage | 0.9 | % | ISO2557 |
| Water absorbency(24h / 23°C) | 20 | mg | ISO62 |
| Thermal properties | |||
| Temperature of deflection under load | 140 | ℃ | ISO75-2 |
| Temperature resistance | 180 | ℃ | DIN44904 |
| Mechanical properties | |||
| Flexural strength | 80 | Mpa | ISO178 |
| Charpy Impact strength | 1.55 | KJ/m2 | ISO179-1 |
| Charpy notched Impact strength | 6.5 | KJ/m2 | ISO179-1 |
| Electrical properties | |||
| Electrical strength | 10 | KV/mm | IEC60243-1 |
| Insulation resistance | 1010 | ohm | IEC60167 |
| Surface resistivity | 1012 | ohm | IEC60093 |
| Volume resistivity | 1012 | ohm*cm | IEC60093 |
| Dissipation factor(1MHz) tanδ | 0.1 | - | IEC60250 |
| Proof Tracking Index | 150 | - | IEC60112 |
Packing&Storage
the package is paper-plastics bag in 25KGS each one
The storage life of this product is 12 months in a cool and dry place in original closed bags
