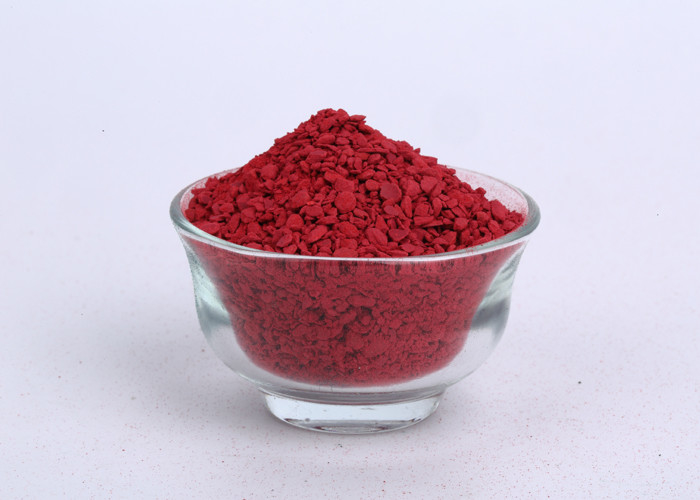

| Appearance: | Red Granule | Package: | 25kg Bag |
|---|---|---|---|
| Process Method: | Injection | Features1: | Improved Toughness |
| Features2: | Good Flow | Features3: | Reduced Noise And Judder |
| High Light: | thermosetting plastic resin,pf resin powder |
||
Phenolic moulding compound(PMC) are produced with with heated rollers or extruders.
Treatment of a mixture of phenolic novolac resin,hexamethylenetetramine, fillers and
additives leads to an intermediate, the actual moulding material. The polycondensation is
driven so far that the moulding material in the final molding step can still flow, but so that
the final cross-linking occurs very quickly. Especially important processing properties are
good flow characteristics and rapid curing.
Used under the upper temperature limit of 200℃ and the upper voltage limit of 220V

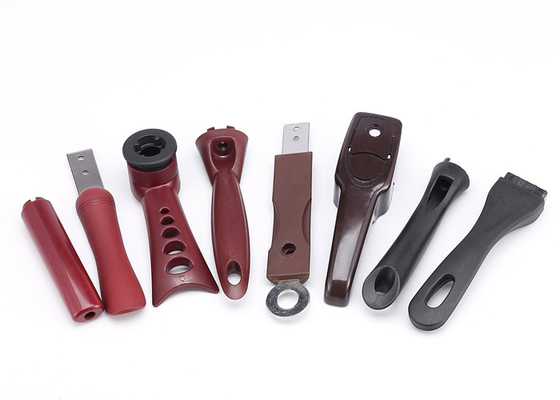

Suitable for handles of pan and pot, lamp holders ,plugs and sockets
☆Good Fluidity
☆ Rapid Curing
☆ High surface quality
Specification:
| Physical properties | Typical value | Unit | Standard |
| Density | 1.5 | g/cm3 | ISO1183 |
| Apparent Density | 0.5 | g/cm3 | ISO60 |
| Moulding Shrinkage | 0.9 | % | ISO2557 |
| Water absorbency(24h / 23°C) | 20 | mg | ISO62 |
| Thermal properties | |||
| Temperature of deflection under load | 140 | ℃ | ISO75-2 |
| Temperature resistance | 180 | ℃ | DIN44904 |
| Mechanical properties | |||
| Flexural strength | 80 | Mpa | ISO178 |
| Charpy Impact strength | 1.55 | KJ/m2 | ISO179-1 |
| Charpy notched Impact strength | 6.5 | KJ/m2 | ISO179-1 |
| Electrical properties | |||
| Electrical strength | 10 | KV/mm | IEC60243-1 |
| Insulation resistance | 1010 | ohm | IEC60167 |
| Surface resistivity | 1012 | ohm | IEC60093 |
| Volume resistivity | 1012 | ohm*cm | IEC60093 |
| Dissipation factor(1MHz) tanδ | 0.1 | - | IEC60250 |
| Proof Tracking Index | 150 | - | IEC60112 |
Packing&Storage
the package is paper-plastics bag in 25KGS each one
The storage life of this product is several months in a cool and dry place in original closed bags
